At UFES, we offer a comprehensive range of high-performance valves designed to meet the demanding needs of industries such as oil and gas, water treatment, chemical processing, power generation, and more. With advanced technology and precise engineering, our valves ensure maximum efficiency, safety, and durability in your operations.

Product Range

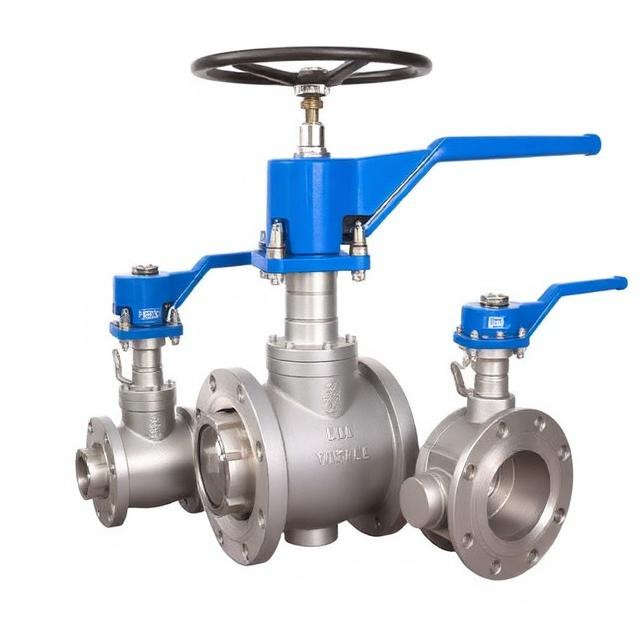

Ball Valve

Ball Valve

Ideal for shut-off applications, our Ball Valves provide excellent flow control, minimal pressure drop, and quick, reliable operation. Available in manual or actuated configurations, these valves are used across multiple industries for their durability and versatility.


Size 2" up to 36" (DN 50 up to DN 900)
Pressure Rating ASME 150# to 2500#
Materials Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay
Design Standard API 6D, API 608
Pressure / Temperature Rating ASME B 16.34
Test Standard API 6D, ISO 5208, API 6FA, ISO 10497, API607, BS 6364
Construction Details Single / Two / Three Piece Design / Side Entry
End Connection Flanged, Butt-Weld
Operator / Actuator Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

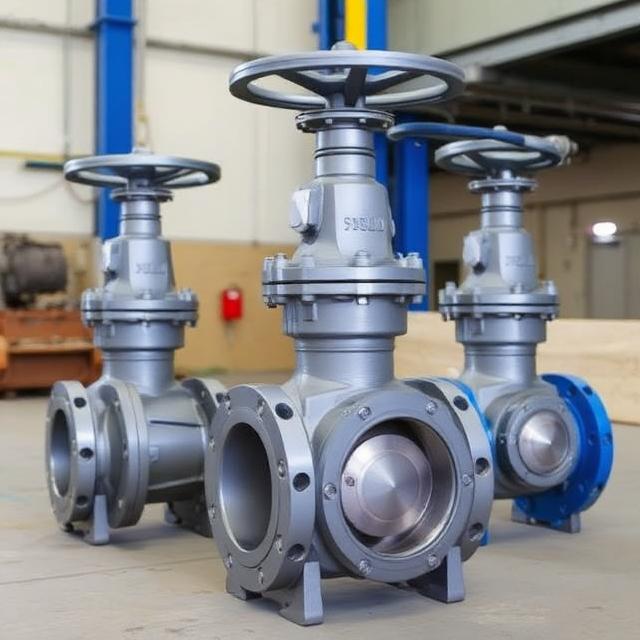

Gate Valve

Gate Valve

Gate Valves are used in applications where full flow is required with minimal pressure drop. These are perfect for both on/off control and handling high-pressure systems in industries like oil & gas, water treatment, and HVAC.


Size 2" up to 36" (DN 50 up to DN 900)
Pressure Rating ASME 150# to 2500#
Materials Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay
Design Standard API 600, BS 1414, API 6D
Pressure / Temperature Rating ASME B 16.34
Test Standard API 598, API 6D, ISO 5208, API6FA, ISO 10497, BS6364
Construction Details Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising Stem
End Connection Flanged, Butt-Weld
Operator / Actuator Handwheel, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

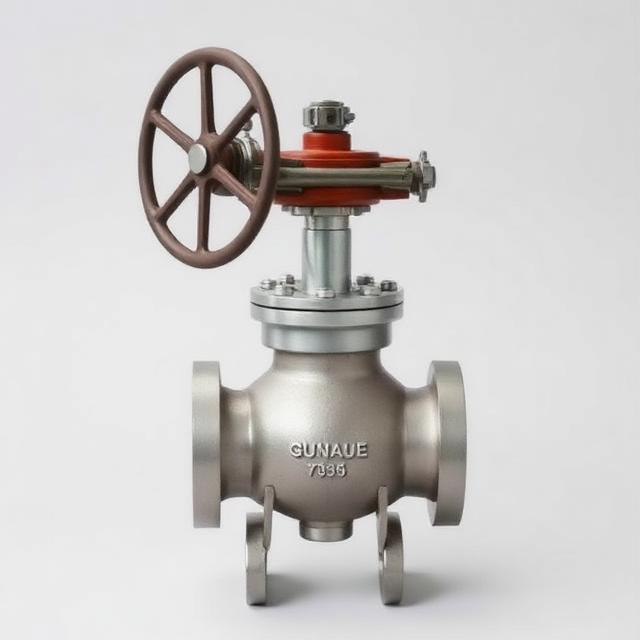

Globe Valve

Globe Valve

For precise flow regulation, our Globe Valves offer superior control and are ideal for applications requiring throttling and flow regulation. With options for both manual and automated control, they are used in diverse processes like steam and chemical regulation.


Size 2" up to 24" (DN 50 up to DN 600)
Pressure Rating ASME 150# to 2500#
Materials Carbon Steel, Low Temperature Carbon Steel, Martensitic Steel, Austenitic Stainless Steel, Duplex & Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy, and Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay
Design Standard BS 1873, API 623
Pressure / Temperature Rating ASME B16.34
Test Standard API 598, ISO 5208, BS 6364
Construction Details Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising Stem
End Connection Flanged, Butt-Weld
Operator / Actuator Handwheel, Gear, Actuators (Pneumatic, Hydraulic, Electro-Hydraulic, Electric Motorised)

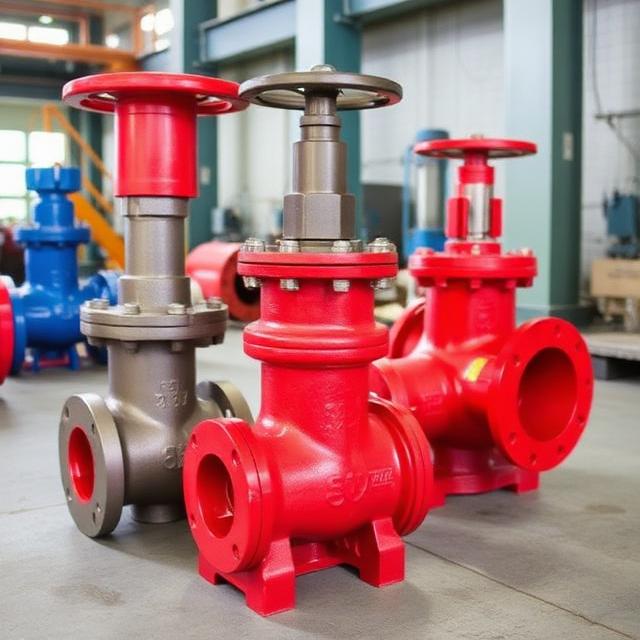

Check Valve

Check Valve

Preventing reverse flow and ensuring safety in critical systems, Check Valves automatically allow fluid to flow in one direction. These valves are perfect for pump protection and preventing damage from backflow.


Size 2" up to 36" (DN 50 to DN 900)
Pressure Rating ASME 150# to 2500#
Materials Carbon Steel, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminium Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay
Design Standard API 594, API 6D
Test Standard API 598, ISO 5208, BS 6364
Construction Details Bolted Cover / Pressure Seal Bonnet, Swing Check, Tilting Disc, Non-Slam Check
End Connection Flanged, Butt-Weld
Pressure / Temperature Rating ASME B 16.34

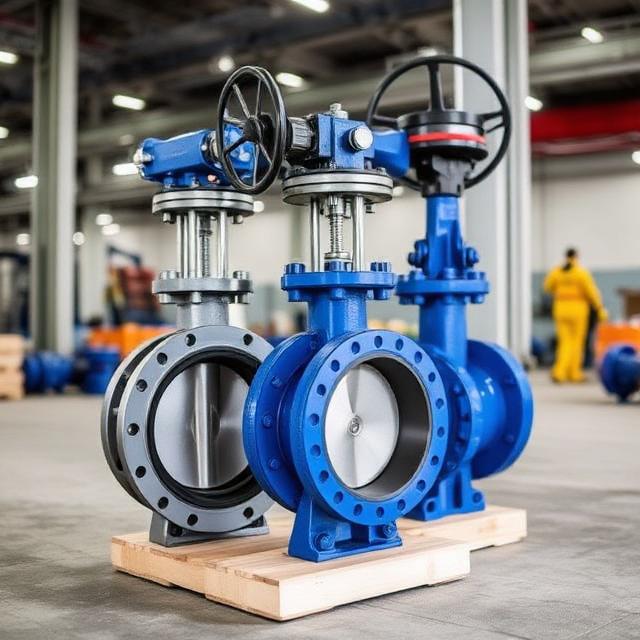

Butterfly Valve

Butterfly Valve

Designed for efficient flow control in large-volume applications, Butterfly Valves offer a lightweight, compact, and cost-effective solution for regulating or isolating flow. These valves operate using a rotating disc, allowing quick shut-off and precise throttling. Widely used in water distribution, HVAC systems, chemical processing, and fire protection systems, butterfly valves are especially suitable where space is limited and fast operation is required.


Size 40mm to 1000mm
Pressure Rating CLASS 150 to 300, PN10, PN16
Pressure and Temp. ratings ASME B16.34, BS 5150
Face to face dim. ASME B16.10, DIN EN 558-1
Inspection & Testing API 598, BS EN 12266-1
Material of Construction CF8, CF8M, CF3M, CN7M, Hastelloy C & all alloys
Lining EPDM, Silicon, Viton

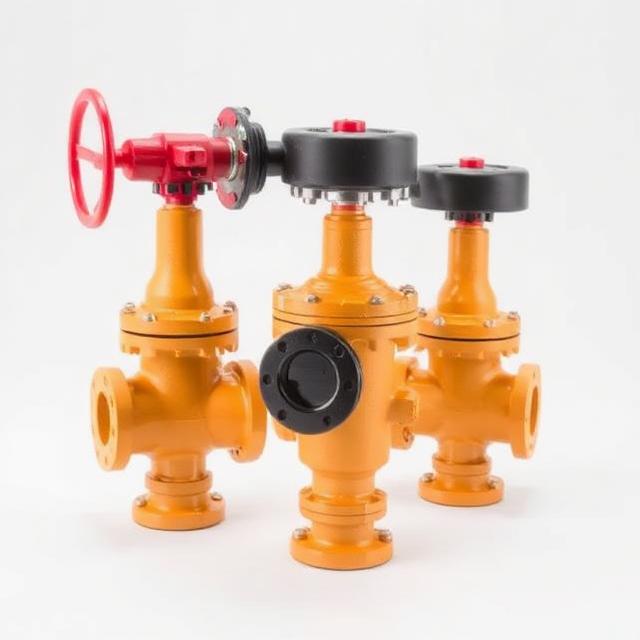

Pressure Relief Valve

Pressure Relief Valve

Pressure relief valves protect systems from overpressure conditions and ensure safe operation. Available in conventional spring loaded, balanced bellows, and pilot-operated designs. Critical safety components in oil & gas, refineries, chemical processing, and power generation.



Product Range
  • Conventional Spring (½"–8", Class 150#–2500#)
  •  Balanced Bellows (½"–6", Class 150#–1500#)
  •  Pilot-Operated (1"–12", Class 150#–600#)
  • Low-Lift / Full-Lift (½"–4", Class 150#–2500#)
  • Rupture Disc Combo (½"–12", Class 150#–2500#)
Industry Applications
  • Oil & Gas – Refineries, Pipelines
  • Power Generation – Boilers, Turbines
  • Chemical Processing
  • Marine & Offshore Platforms

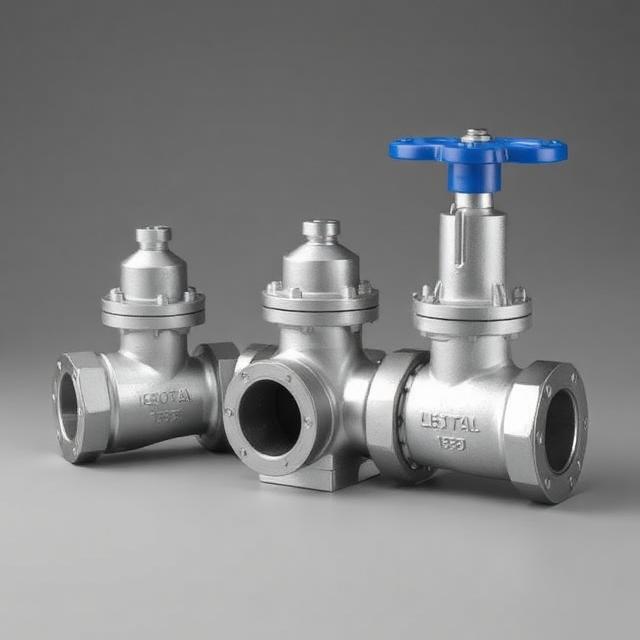

Plug Valve

Plug Valve

Plug Valves offer reliable on/off control and are widely used in services with suspended solids and other challenging fluid conditions. These valves provide an easy-to-operate solution with minimal maintenance requirements.


Size ½" up to 36" (DN15 up to DN900)
Pressure Rating ASME 150# to 2500#
Materials Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay
Design Standard API 6D, API 599, BS 5353, MESC SPE 77/107
Pressure / Temperature Rating ASME B 16.34
Test Standard API 598, API 6D, MESC 77/107, ISO 5208
Construction Details Inverted Plug Pressure Balanced / Lubricated
End Connection Screwed, Socket Weld, Flanged, Hub End, Butt-Weld
Operator / Actuator Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
